Part-2 : Interrupt


In this part I will describe about microcontroller's interrupt . You must learn about this , it's really important !!.

Interrupt means , make a restriction to something. In microcontroller when interrupt happens , the total process is restricted and microcontroller executes only the instructions which are provided into the interrupt function .
Consider that we are driving a car on the road . The road is clean and clear. So we are doing what we are supposed to do . Compare this with microcontroller or microprocessor and  we find that MCU performs it's general routine at running state like our car. Alright ! .

Again consider , Suddenly three Dogs have come to the middle of the road . So we need to stop and get the dogs out of there . After doing that we can move . When we saw the dog , our journey was interrupted and we needed to do a certain process. Compare that with microcontroller. When microcontroller get notification about interrupt,  microcontroller forget everything and perform tasks that are written in interrupt function . After doing that MCU get back to it's general routine . That's the way the microcontroller or microprocessor's interrupt work .
how to control an external interrupt
how to control an external interrupt

There are two types of Interrupt

1. Internal Interrupt    2.External Interrupt



***Internal Interrupt :

Internal interrupts occurs during the time of internal events . Timer overflow interrupt can be considered as one kind of internal interrupt . When timer counts and timer register becomes full with data , on that situation it's required to reset the register so that it can count again . On that situation timer overflow interrupt occurs. Interrupt function clear the register and finally mcu goes to the regular routine .

In this Part , i will describe only about External Interrupt


***External Interrupt :

External interrupt occurs during the time of external events . When any external signal comes to the external interrupt pin , external interrupt happens . To understand completely , we will interface a push button with microcontroller and that will provide an interrupt event to the MCU .

Now it's time to take a look on pic 18f25550 microcontroller's properties:
IR (Infrared) Remote Control Communication Between Two Microcontroller -Step By Step Tutorial : Part-2
INTCON Register of PIC 18f2550

Note : INT pins indicates the pins for External Interrupt
PIC 18f2550 microcontroller has three external interrupt pins , which are RB0(INT0) , RB1(INT1) and RB2(INT2) . To control these pins we have INTCON , INTCON2 and INTCON3 registers. In this tutorial we will use RB0(INT0) as an external interrupt and we will see an example of this .
IR (Infrared) Remote Control Communication Between Two Microcontroller -Step By Step Tutorial : Part-2
Pin Out of PIC 18f2550
Now take a look on INTCON register
IR (Infrared) Remote Control Communication Between Two Microcontroller -Step By Step Tutorial : Part-2
INTCON Register of PIC 18f2550
IR (Infrared) Remote Control Communication Between Two Microcontroller -Step By Step Tutorial : Part-2
INTCON Register

Required Configuration to Setup RB0(INT0) as Interrupt:

1. First set Global interrupt [INTCON.GIE=1] to 1.
2. Set Peripheral Interrupt to 1 .[INTCON.PEIE=1]
3. Set RB0 as External Interrupt .[INTCON.INT0IE=1]
4. Disable Pull-Ups on PortB [INTCON2.RBPU=1].
5. Finally set RB0 interrupt flag [INTCON.INT0IF=0]
6. Setup interrupt on RB0 as Falling Edge (You may use rising Edge) [INTCON2.INTEDG0=0]

  INTCON.GIE=1;  // Enabling Global Interrupt
  INTCON.PEIE=1;  // Enables Peripheral Interrupt
  INTCON.INT0IE=1;  // Enables RB0 pin as external interrupt
  INTCON.INT0IF=0;  // Set the RB0 interrupt flag as 0 . that means no interrupt happens .
  INTCON2.RBPU=1; // DISABLE PULUP REGISTER
  INTCON2.INTEDG0=0;  // Set Interrupt on RB0(INT0) as Falling Edge .
IR (Infrared) Remote Control Communication Between Two Microcontroller -Step By Step Tutorial : Part-2
INTCON2 Register

Interrupt on Rising Edge and Falling Edge

It's required to set exact condition of interrupt. That means, which condition can be considered as an interrupt . Is it for from 0 to 1 Condition ? or from 1 to 0 Condition ?

Interrupt Flag:

Now we will create a project where a push button will be connected with RB0 pin. When button is pressed, the RB0 pin receive a falling edge signal of external interrupt . At that time the MCU follows the interrupt function routine .

Listen to me , carefully . Flag is one kind of indicator .When any interrupt occurs at RB0 pin , this makes INTCON.INT0IF=1;That means RB0 pin related interrupt flag becomes 1 .This gets our microcontroller understand that interrupt has happened. When we set  INTCON.INT0IF=0 , microcontroller continues to it's general function routine. That's why we need to set INTCON.INT0IF=0 in interrupt function and microcontroller goes to perform it's general routine. If again interrupt occurs, flag is set to INTCON.INT0IF=1. After this interrupt function makes INTCON.INT0IF=0 and microcontroller goes to general routine.That's all .

IR (Infrared) Remote Controlled Communication Between Two Microcontroller -Step By Step Tutorial : Part-2
IR (Infrared) Remote Controlled Communication Between Two Microcontroller -Step By Step Tutorial : Part-2
Note :1. In coding the External Interrupt ( INT ) pin should be declared as digital input pin .
          2.To write interrupt function routine . We just need to write a function like this ,

void interrupt(){

......

......

..}

Your microcontroller will automatically understand that it is a interrupt routine .




MikroC Source Code for External Interrupt :


 //



 sbit LCD_RS at RB7_bit;
 sbit LCD_EN at RB6_bit;
 sbit LCD_D4 at RB5_bit;
 sbit LCD_D5 at RB4_bit;
 sbit LCD_D6 at RB3_bit;
 sbit LCD_D7 at RB2_bit;
 sbit LCD_RS_Direction at TRISB7_bit;
 sbit LCD_EN_Direction at TRISB6_bit;
 sbit LCD_D4_Direction at TRISB5_bit;
 sbit LCD_D5_Direction at TRISB4_bit;
 sbit LCD_D6_Direction at TRISB3_bit;
 sbit LCD_D7_Direction at TRISB2_bit;
 // End LCD module connections
 unsigned int count=0,sgnal=0;
 int chk=7,j=0,xr=0;
 void interrupt()
 {
 if(INTCON.INT0IF){
  PORTC=0xFF;
  chk=3;
  INTCON.INT0IF=0;
 }
 }
 void main()
 {
  ADCON1=0x0F;
  CMCON=7;
   TRISC=0x00;
  Lcd_Init();
  Lcd_Cmd(_LCD_CLEAR);        // Clear display
  Lcd_Cmd(_LCD_CURSOR_OFF);
  INTCON.GIE=1;
  INTCON.PEIE=1;
  INTCON.INT0IE=1;
  INTCON.INT0IF=0;
  INTCON2.RBPU=1; // DISABLE PULUP REGISTER
  INTCON2.INTEDG0=0;
  while(1){
  PORTC=0x00;
      if(chk==7){
     Lcd_Cmd(_LCD_CLEAR);
     Lcd_Out(1,1,"General");
      Lcd_Out(2,3,"Routine");

       } else{
      Lcd_Cmd(_LCD_CLEAR);
     Lcd_Out(1,1,"Interrupt");
      Lcd_Out(2,3,"Routine");

      chk=7;
        }
  }
 }
It isn't wise to use delay_ms() function in this case .

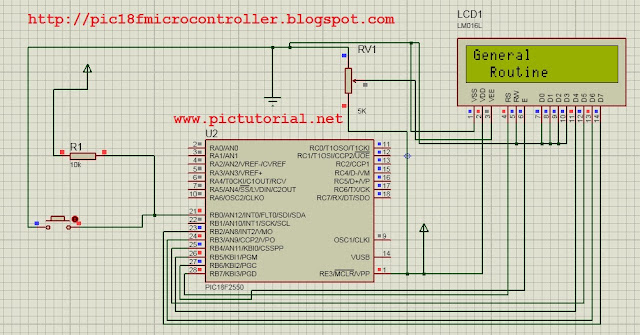

Proteus Circuit for External Interrupt :


IR (Infrared) Remote Control Communication Between Two Microcontroller -Step By Step Tutorial : Part-2
IR (Infrared) Remote Control Communication Between Two Microcontroller -Step By Step Tutorial : Part-2

IR (Infrared) Remote Controlled Communication Between Two Microcontroller -Step By Step Tutorial : Part-2



Download this project

>>Continue to 3rd PART<<
